Indoor 5G/ Lte

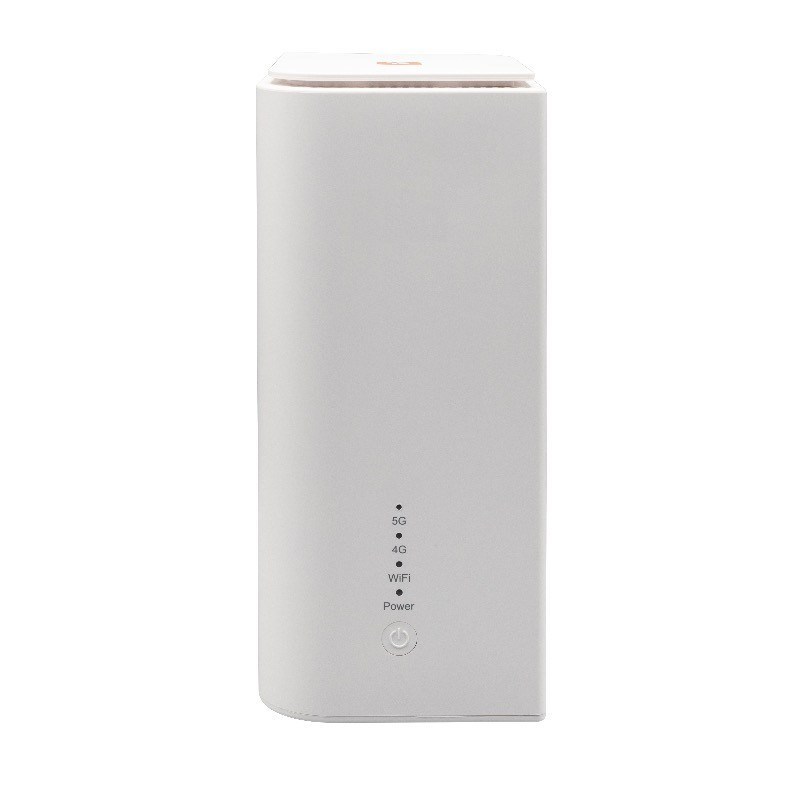

Photon ID63M 5G indoor CPE is a terminal device that supports two network architectures, 5G Standalone (SA) and Non-Standalone (NSA), offering a faster transmission speed, higher bearing capacity, and lower network latency.

contact-sales

Applicable scheme : Indoor

Enterprise: 5G



Description

The Photon ID63M 5G indoor CPE is a terminal device that supports two network architectures, 5G Standalone (SA) and Non-Standalone (NSA), offering a faster transmission speed, higher bearing capacity, and lower network latency.

The Photon ID63M CPE provides 5G Sub-6 band access to base stations and LAN-side support for Wi-Fi 6 access. These functions enable a fast and reliable customer experience for multiple scenarios, including Internet of Things (IoT) gateways, industrial monitoring, telemedicine, Unmanned Aerial Vehicles (UAV), and immersive experiences like Virtual Reality (VR) and Augmented Reality (AR).

This product has a standard one-year warranty.



NOTE: Features can vary based on model or region.

• 5G SA/NSA Dual mode

• Supports NR Bands N1/N2/N3/N5/N7/N8/N12/N13/N14/N18/N20/N25/N26/N28/N29/N30/N38/N40/N41/N48/N66/N70/N71/N75/N76/N77/N78/N79

• Supports LTE TDD Bands B34/B38/B39/B40/B41/B42/B43/B46 (LAA)/B48 (CBRS)

• Supports LTE FDD Bands B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

• Complies with 3GPP Release 16 standards

• 1000 Mbps Ethernet interface

• Supports Wi-Fi 6 AX1800, dual bands

• Peak data rates:–NR SA: Up to DL 2500 Mbps and UL900 Mbps

• NR NSA: Up to DL 3500 Mbps and UL555 Mbps



•256 QAM for DL and 256 QAM for UL as thehighest-order modulation formats

•Built-in Omni-directional 5G and Wi-Fi antennas

•GUI-based local and remote Web management

•Excellent Non-Line-of-Sight (NLOS) coverage

•Supports TR-069 network management protocol

•Cell lock, SIM lock, and pin lock

•User-friendly LED status indicators

•Transparent bridge mode* (L2 Support)

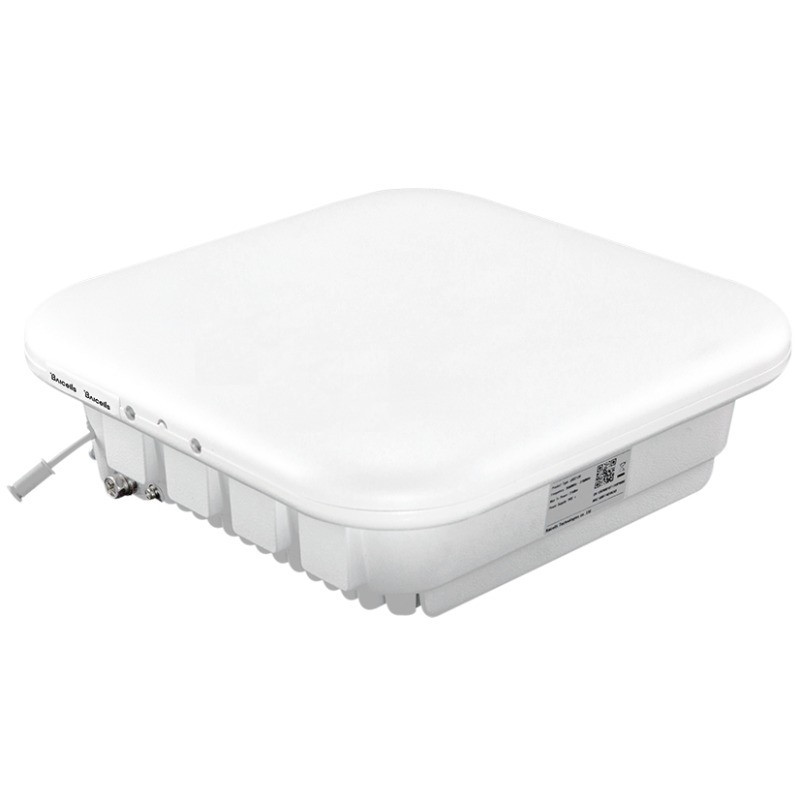

ATOM OD04 HIGH GAIN CPE

The Atom High-Gain CPE was designed specifically to get those hard-to-reach subscribers. Offering incredible NLOS penetration while maintaining a compact plug-and-play design model, this unit makes it possible to reach the most remote end-user with minimal investment.



It operates on standard LTE FDD or TDD to enable high-speed wireless communications.

The Atom OD04H enables improved wireless coverage in environments with blockage or partial blockage, like dense trees or buildings, in the wireless signal path between the CPE and eNBs.

Wireless and wired devices can simultaneously access the Atom OD04H CPE, including mobile phones, laptops, tablets, and other smart devices.

This product has a standard one-year warranty; an extended warranty is available.



Supports LTE FDD and TDD Bands 7/38/40/41/42/43/48

Complies with 3GPP Release 9 CAT4 standards

100 Mbps Ethernet interface

Peak data rate of up to DL 100 Mbps

Peak data rate of up to UL 27 Mbps

64QAMforDLand16QAMforULasthe highest order modulation formats

Built-in bipolar directional LTE antenna

GUI-based local and remote Web

management

Excellent Non-Line-of-Sight (NLOS) coverage

Supports TR-069 network management protocol

Cell lock, SIM lock, and pin lock

User-friendly LED status indicators

Pole or wall mounted

Wi-Fi assisted alignment

Transparent Bridge Mode* (L2 Support)

* Planned for future release.
