5G Basestation

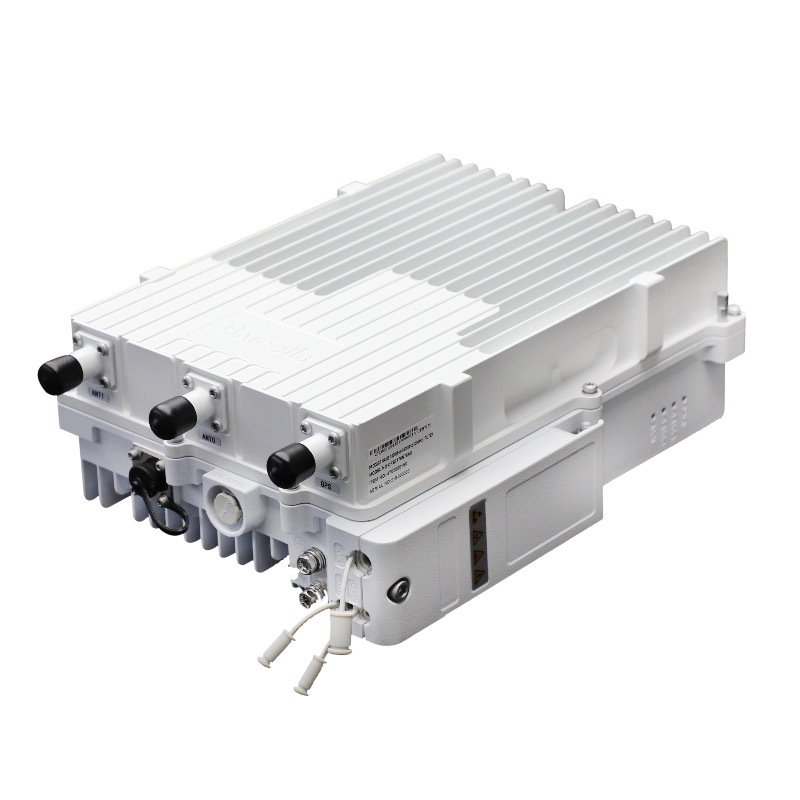

AirwireBTS 243 is an advanced outdoor 5G Sub-6G integrated base station (gNodeB) designed and developed based on the Qualcomm 5G System on a Chip (SoC) solution. This 2x10W gNB consumes low power, has a small form factor, and is easy to maintain
Standard NR Bands N41/N48/N77/N78 – Customization can be requested
• Complies with 3GPP Release 15 and Release 16*
• GUI-based local and remote Web management
• Supports 100 MHz bandwidth
• Peak data rate of up to DL 850 Mbps
• Peak data rate of up to UL 330 Mbps
• Supports up to 600 RRC connected users and 200 RRC active users on 100 MHz channels, or 500 RRC connected users and 100 RRC active users on 40 MHz channels
• Supports Standalone (SA) mode
• Supports F1 interface setting*
• Supports Internet Key Exchange Stream Control Transmission Protocol (IKE SCTP)
• Supports embedded 5G core network (HaloB)
• Supports integrated antenna panel kit*
• Integrated small cell form factor for quick and easy installation
• Supports flexible xHaul
• Highly secured with equipment certification against potential intrusion risk
• Supports TR-069 network management interface
• Lower power consumption, which reduces OPEX
* Planned for future release
Specifications
Standard5G NR TDD (3GPP R15 and R16 compliant)
Frequency Bandn41 (2515 MHz – 2675 MHz) n48 (3550 MHz – 3700 MHz) n77 (3800 MHz – 4200 MHz) n78 (3300 MHz – 3600 MHz) / (3600 MHz – 3800 MHz) n79 (4500 MHz – 4900 MHz) / (4800 MHz – 4900 MHz)
Channel Bandwidthn41: 30/90/100 MHz n48: 10/20/30/40 MHz n77: 100 MHz n78: 10/20/30/40/50/60/70/80/90/100 MHz n79: 100 MHz
Multiplexing2x2 MIMO (DL: 2L, UL: 2L)
Network ManagementIPv4/IPv6, UDP, TCP, ICMP, NTP, SSH, IPsec, TR-069, HTTP/HTTPs, DHCP
Antenna2T2R N-Type connectors for external high-gain antenna
Peak RateDL: 850 Mbps, UL: 660 Mbps on 100 MHz 256 QAM
User CapacityUp to 1200 RRC connected users and 200 RRC active users
LatencyRound-trip delay (RTD) less than 10 milliseconds
Transmit Power Range0 to 40 dBm per channel (combined +43 dBm, configurable) (1 dB interval)
WeightWith bracket: about 16.5lbs / 7.5kg Without bracket: about 15.9lbs / 7.2kg
Dimensions (HxWxD)13.1 x 9.4 x 4.3 inches/333 X 240 X 109 millimeters
Gamma 452E 5G

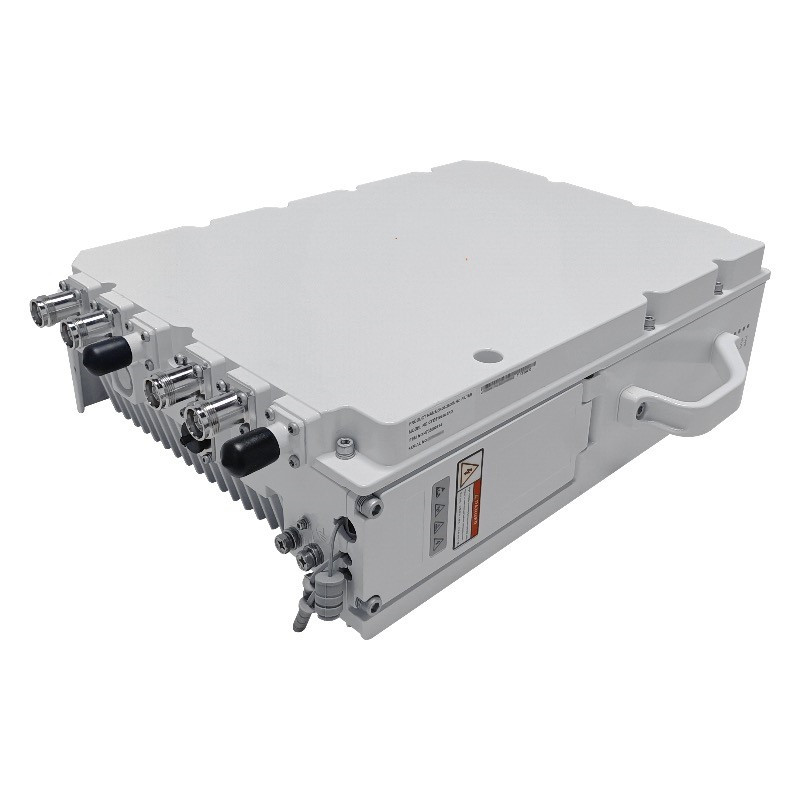

The Gamma452E is an advanced outdoor 4x40 W Remote Radio Unit (RRU) that operates in 5G New Radio (NR) mode. It supports the Open Radio Access Network (O-RAN) evolved Common Public Radio Interface (eCPRI) 7-2a for integration with third-party O-RAN Distributed Units (O-DU). The Gamma452E is the first macro outdoor O-RAN Radio Unit (O-RU) certified through the Open Testing and Integration Centre (OTIC) conformance test. Additionally, it has been tested by O-DU Emulator Keysight and VIAVI and has completed integration testing (IOT) with third-party O-RAN DUs.
